Description
4G WiFi IoT Router with CAT1 LTE Modem
Max 10Mbps download speed, the CAT1 LTE router is a low-cost gateway with low and medium-throughput for IoT applications.
Use an outdoor CAT1 router to receive stronger 4G mobile signals and provide extensive WiFi coverage in the outdoor area.
CAT1 – Outdoor 4G IoT Gateway
As 2G and 3G are coming to an end, the 4G router provides a seamless solution for IoT applications to switch to widely deployed 4G LTE mobile networks. Defined by 3GPP Release 8, the LTE CAT1 offers 10Mbps download speed and 5Mbps upload speed for the devices and applications that request low throughput.
The LTE CAT1 router supports global coverage, lower latency, data streaming, half-duplexing, and mobile tower handoff. Due to lower data usage and power consumption than higher LTE categories routers, the LTE CAT1 router is an excellent choice for IoT sensors, POS terminals, vending machines, ATMs, asset trackers, smart meters, etc.
Rugged Outdoor CAT1 Router for Demanding Applications
Come with an antirust and waterproof aluminum enclosure, and the outdoor CAT1 LTE router is capable of using in any extreme environment.
Harsh Environment
Provides rugged internet for IoT sensors, industrial applications, water treatment, etc.
Outdoor Events
Use a SIM card to set up a temporary internet for outdoor events, construction sites, etc.
Remote & Rural Areas
Receive stronger outdoor 4G signals. Extreme outdoor WiFi coverage.

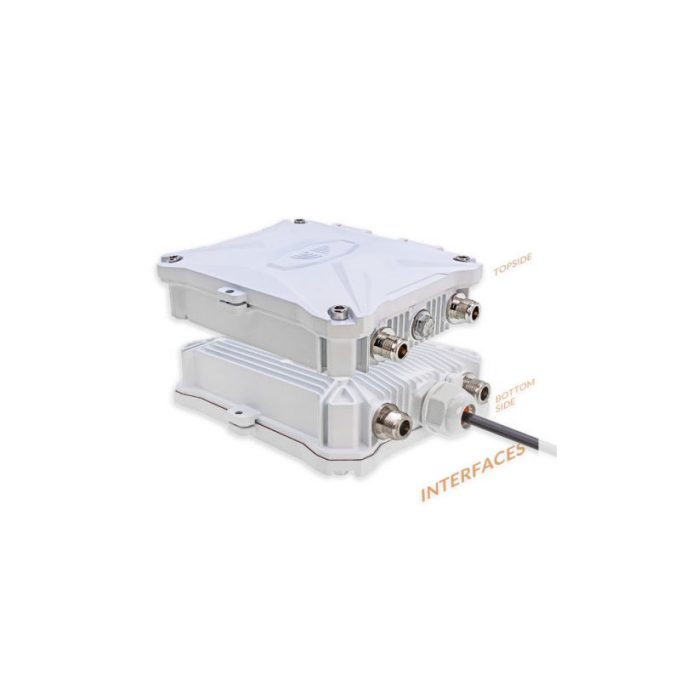

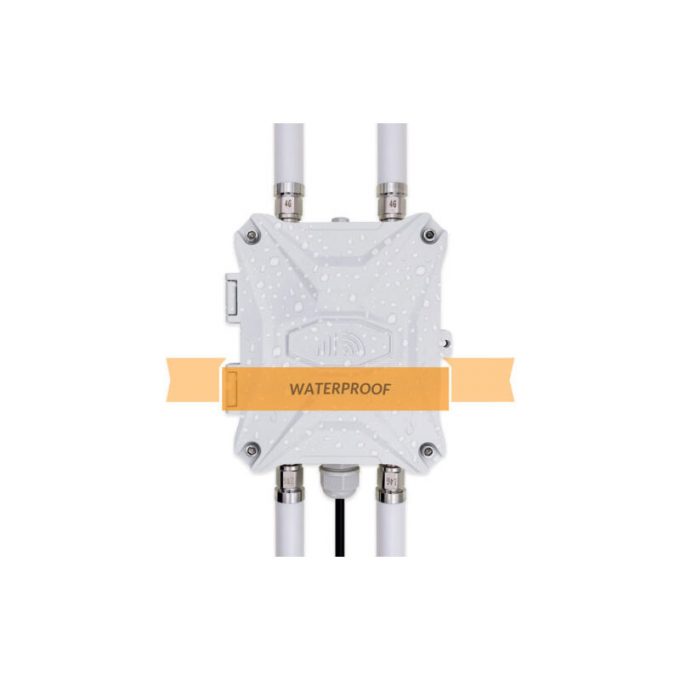

The Latest Innovative Waterproof Enclosure
Diecast from anti-corrosion ADC12 aluminum by 100-ton pressure. The outdoor 4G router has the unique & modular designed enclosure with a weather-proof coating.
The durable enclosure provides waterproof protection in demanding environments.
A set of o-rings seals and gaskets protects the 4G router against water and dust.
The outdoor enclosure has effective heatsink fins with rain diverters. The 4G router works in the temperature range of -40° ~ +80° celsius.
Integrate lighting protection of common 6KV & differential 1.5KV.
The breather valve prevents rupturing or imploding.

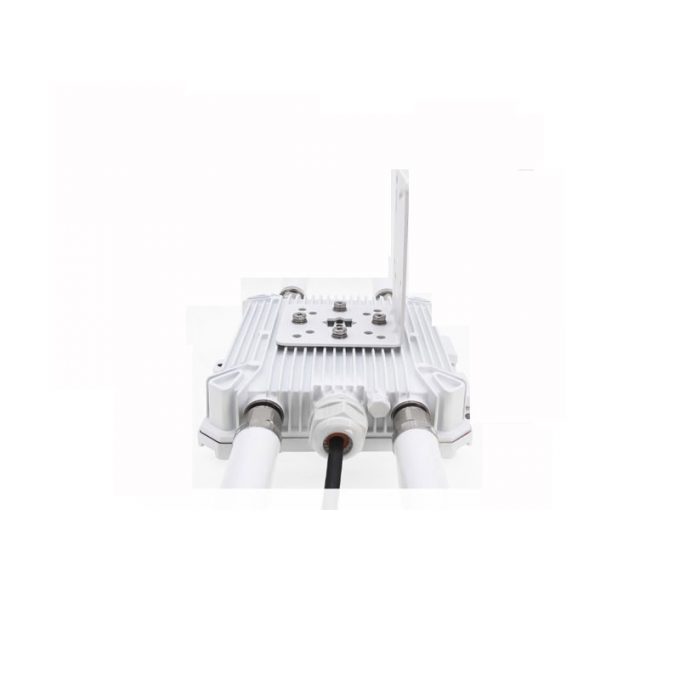

Flexible Mounting System
Easily install the router on a pole or wall surface with the robust bracket system.
It offers flexible solutions to install in vertical or horizontal directions.
Long-range Outdoor Wi-Fi Coverage
ii. Standalone MIMO Wi-Fi hotspot on 2.4GHz. Powered by a 1-watt booster, the Wi-Fi signal covers 150~300 yards in an open space. Connect up to 57 Wi-Fi-enabled devices to the internet, such as cameras, doorbells, etc. It also supports the Wi-Fi relay.
PoE Power & LAN Ethernet
iii. PoE Power System — Comply with 802.3af/at PoE standard, the outdoor 4G router uses a LAN cable to transmit both DC power and Ethernet data. It supports a max 50-meter LAN cable. You can also power it up with a 12V DC power adapter.
iv. LAN Ethernet Connection — Connect network switch, second router, or computer to the LAN port on PoE injector to extend the 4G internet to an indoor area.
High-gain External Antennas
v. Include wideband LTE antennas and omnidirectional Wi-Fi antennas. These external antennas are upgraded with UV coating and hexagon SS connectors. The robust N-female connectors support upgrades to directional antennas to improve the signal reception.
