Description
System Overview
Experience superior 5MP video and the simplicity of reusing existing coaxial infrastructure with HDCVI. The Lite series 5MP HDCVI camera features a compact design and offers a high quality image with rich details at a friendly price.

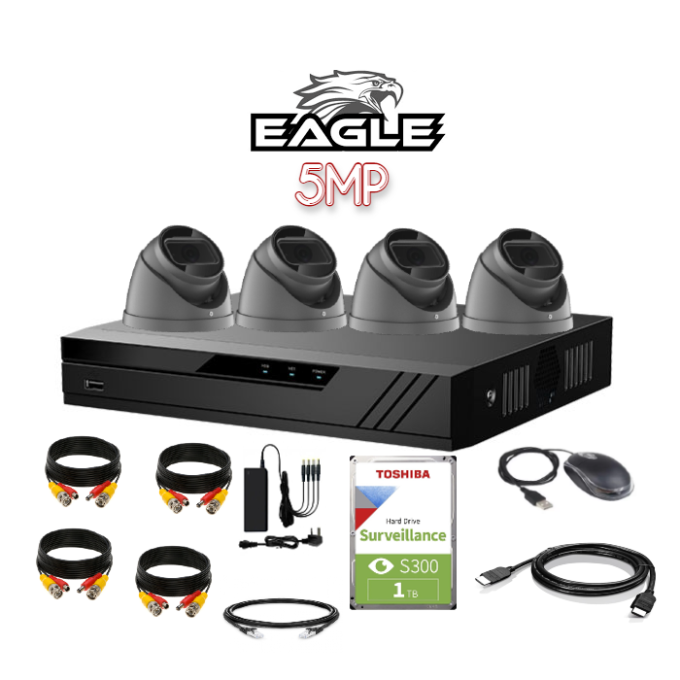

The Eagle 4 Channel 5MP DVR Lite Series is designed for high cost performance and quality. With the adoption of Smart H.265+/H.265, the series improves encoding efficiency, saving on bandwidth/storage costs, and significantly reducing the total cost of ownership. Smart Codec, H.265+ can reduce up to 90% bit rate and storage requirements.
The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation. The HDCVI system supports long distance transmission over coaxial cable and UTP, max. 700m for 4K/4MP, 800m for 1080P and 1200m for 720P. Face recognition is a typical technology being used in a variety of applications for searching or identification of individuals. Additionally, function helps you get more motion detect video during a short time through drawing a region when playback. It is very useful when an emergency occurs.
Features
- Video interface: 1x HDMI ,1x VGA
- Analog camera input: 4x Channel, BNC
- Playback: 1/4 channels with multiple functions
- Audio IN/OUT: 1x/1x RCA
- Video compression: H.265+/H.265/H.264+/H.264
- Camera types: HDCV, AHD, TVI, CVBS
- Resolution: 2,560 x 1,920,1920×1080, 1280×1024, 1280×720 (5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF)
- Bit rate: 32kbps to 6144kbps per channel
- Record mode: Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
- Audio: AAC, G.711A, G.711U, PCM (8kHz, 16-bit per channel, 64kbps per channel)
- OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording
- Network interface: 1x RJ45 port
- Mobile device operation: iPhone, iPad, Android
- Maximum users access: 128x users (operating system: LINUX embedded)
- Internal HDD SATA Port (no HDD in-built, max capacity 6TB)
- Auxiliary interface: 2x USB 2.0
- Power supply: 12V DC/1.5A
- Dimensions (HxWxD): 48x260x236mm
- Gross weight: 0.9kg
